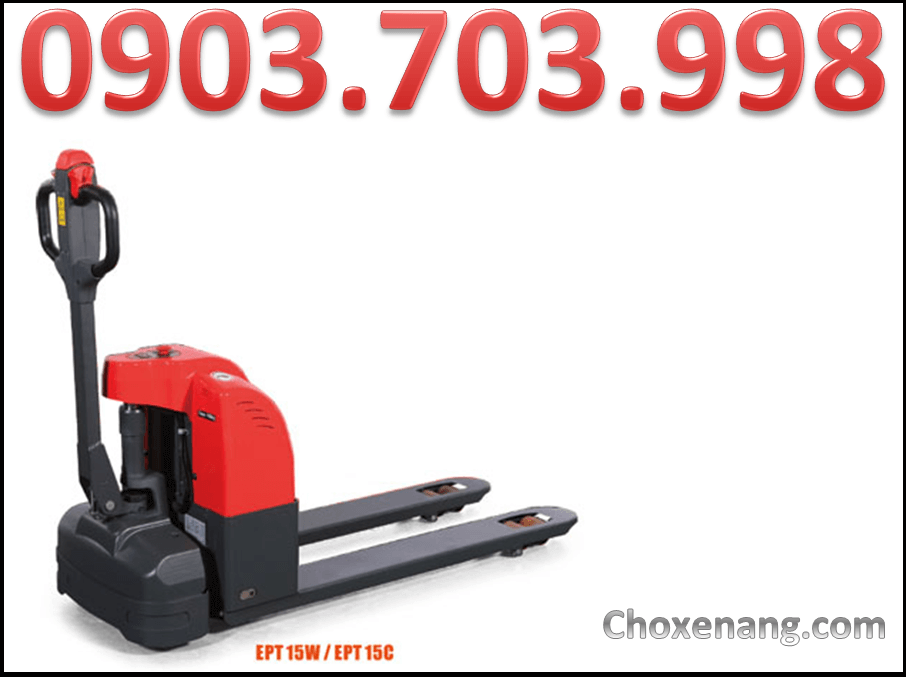

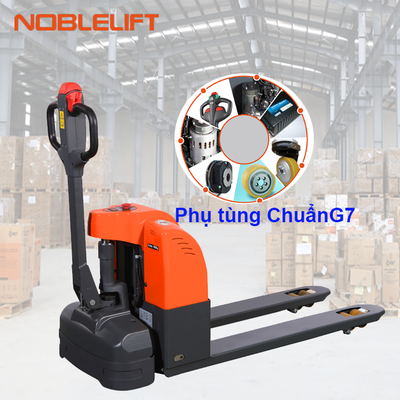

Xe nâng điện thấp EPT15 tại Bình Dương

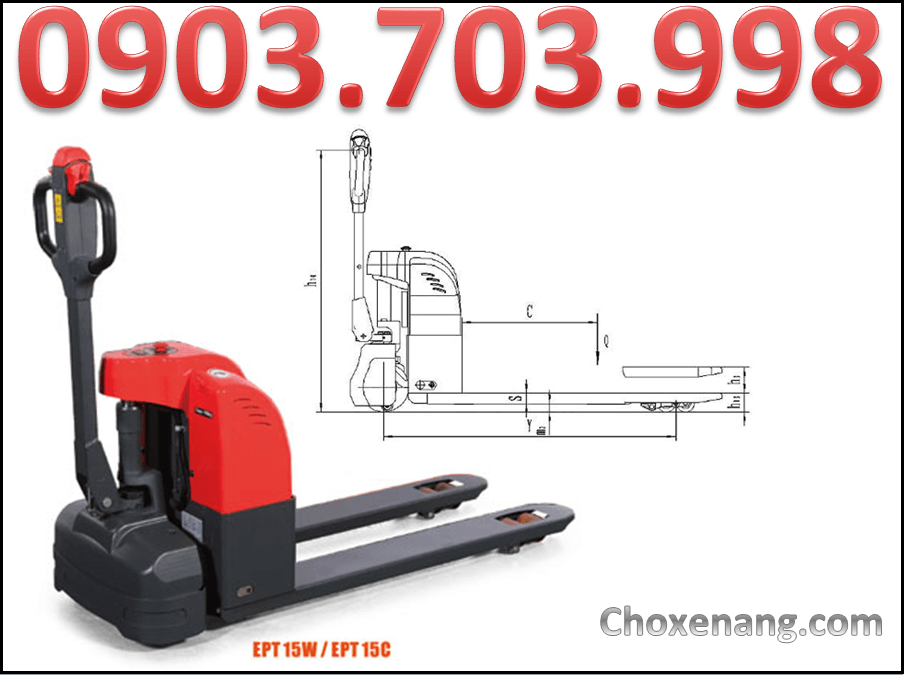

Type sheet for industrial truck acc. to VDI 2198

1KG=2.2LB 1INCH=25.4mm

Distinguishing mark

1.2

Manufacturer`s type designation

EPT 15

SPT 15N

1.3

Drive

Electric

Battery

1.4

Operator type

Pedestrian

Pedestrian

1.5

Load Capacity / rated load

Q (t)

1.5

1.5

1.6

Load centre distance

c (mm)

600

600

1.8

Load distance ,centre of drive axle to fork

x (mm)

946

946

1.9

Wheelbase

y (mm)

1293

1279

Weight

2.1

Service weight

kg

190

200

165

175

2.2

Axle loading, laden front/rear

kg

510/1180

560/1140

458/1207

480/1195

2.3

Axle loading, unladen front/rear

kg

150/40

160/40

130/35

140/35

Tyres, chassis

3.1

Tires

Polyurethane (PU)

3.2

Tire size,front

Ø x w (mm)

Ø 220×70(230×73)³⁾

Ø 220×70

3.3

Tire size,rear

Ø x w (mm)

Ø 80×70

Ø 80×93

Ø 80×70

Ø 80×93

3.4

Additional wheels(dimensions)

Ø x w (mm)

Ø 50(80)¹⁾ ×30

Ø50×30

3.5

Wheels,number front/rear(x=driven wheels)

1x +2/ 4

1x +2/ 2

1x +2/ 4

1x +2/ 2

3.6

Tread, front

b10 (mm)

340(410)¹⁾

340

3.7

Tread, rear

b11 (mm)

380

380

Dimensions

4.4

Lift

h3 (mm)

115

115

4.9

Height of tiller in drive position min./ max.

h14 (mm)

800 / 1170

850 / 1295

4.15

Height, lowered

h13 (mm)

85(80)

80

85(80)

80

4.19

Overall length

l1 (mm)

1648(1660) ¹⁾

1718(1730)¹⁾

1666

1736

4.20

Length to face of forks

l2 (mm)

498(510)¹⁾

516

4.21

Overall width

b1 (mm)

560(574)¹⁾

705

560

705

4.22

Fork dimensions

s/e/l (mm)

48/160/1150²⁾

48/160/1220²⁾

48/160/1150²⁾

48/160
/1220²⁾

4.25

Distance between fork- arms

b5 (mm)

540(520)

685(520,540)

540(520)

685(520,540)

4.32

Ground clearance, centre of wheelbase

m2 (mm)

37(32)

32

37(32)

32

4.34

Aisle width for pallets 800X1200 lengthways

Ast (mm)

1950

1961

4.35

Turning radius

Wa (mm)

1445(1460)¹⁾

1507

Performance data

5.1

Travel speed, laden/ unladen

km/h

4.2 / 4.6

4.2 / 4.6

5.2

Lift speed, laden/ unladen

m/s

0.03 / 0.053

-

5.3

Lowering speed, laden/ unladen

m/s

0.049 / 0.036

-

5.8

Max. gradeability, laden/ unladen

%

4 / 10

4 / 10

5.10

Service brake

Electromagnetic

Electric- engine

6.1

Drive motor rating S2 60min

kW

0.45

0.45

6.2

Lift motor rating at S3 10%

kW

0.8

-

6.3

Battery acc. to DIN 43531/ 35/ 36 A, B, C, no

No

no

6.4

Battery voltage, nominal capacity K5

V/ Ah

2x12V / 64

2x12 / 40
